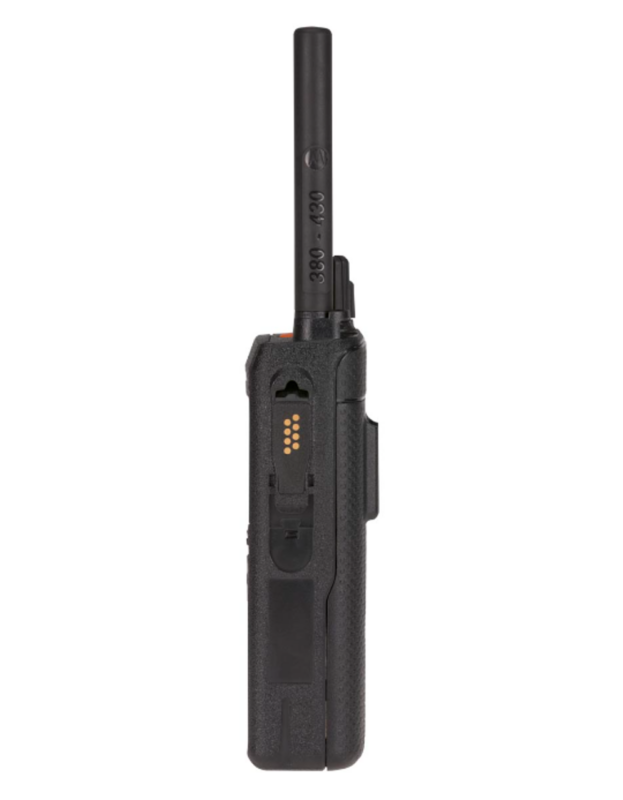

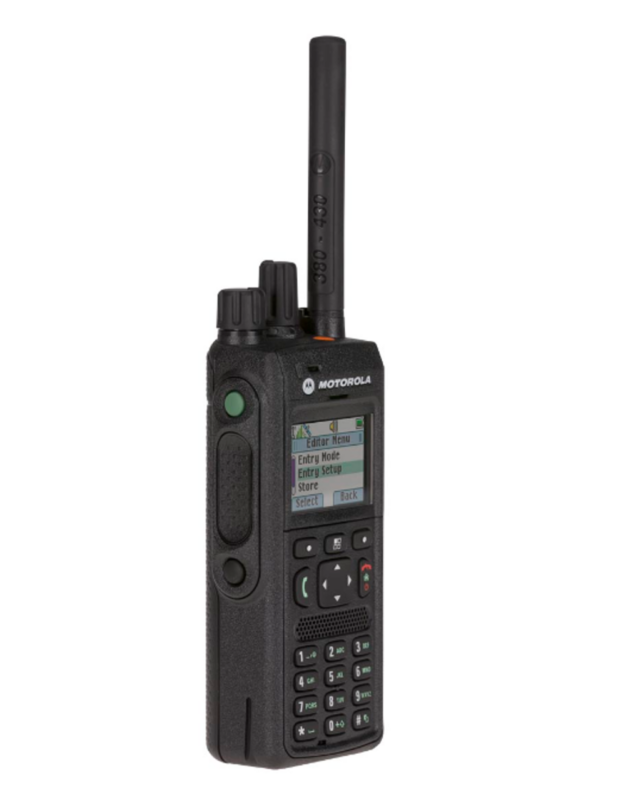

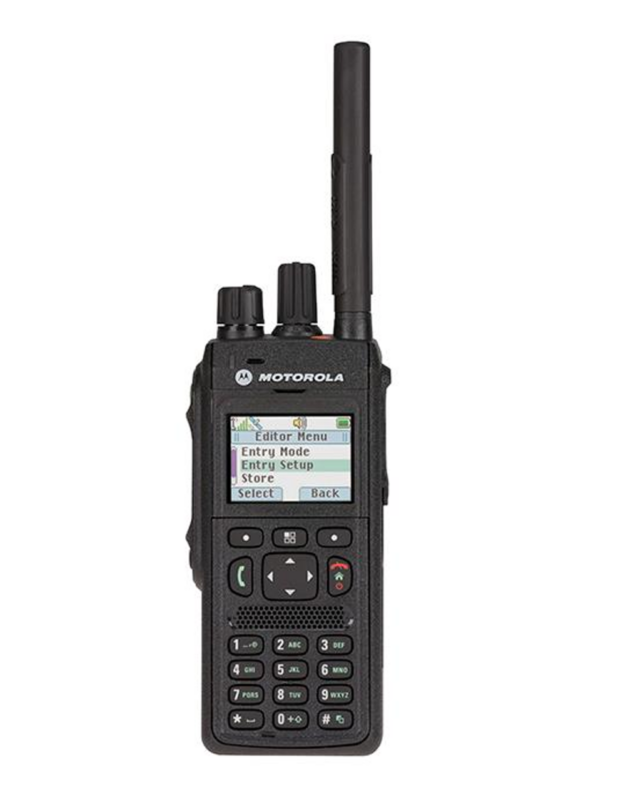

Motorola MTP3550

Motorola MTP3550 Two-Way

The MTP3550 is built for public safety and mission-critical operations, offering robust features such as loud, clear audio, a fall detection (man-down) sensor, and an option for high transmission power. It is rated IP65, IP66, and IP67 for dust and water resistance. Other key features include a vibrate alert, RFID hardware option, secure Bluetooth®, and support for Global Navigation Satellite Systems (GNSS) like GPS and either BeiDou or Glonass. The device also includes a full keypad.

Key features Include

• Battery – STD LIION 1950T NNTN8020
• Belt Clip
• Band Split UHF 350-470 MHz
• Display & Keypad Type  Display,Full Keypad
• Encryption Type (Options) Air Interface Encryption: TEA1, TEA2, TEA3
• Enhanced Radio Features Supported* GPS, BeiDou, GLONASS, Bluetooth, Mandown
• Intrinsically Safe No
• IP Rating IP67
• Power   Class 3 (2.8W) Class 3L (1.8W) Class 4 (1W)

Antennas

Audio/Earpieces

Batteries

Carry Solutions

Chargers

• Dimensions Height: 124mm Width: 53mm Depth: 33.5mm (with 1950mAh battery)
• Weight 280g (with 1950mAh battery) 295g (with 2200mAh battery)
• Max Volume 2W
• Frequency Bands 350-470 MHz, 800 MHz
• STATUS messaging in TMO and DMO
• SDS messaging in TMO and DMO
• Supports concatenated SDS (1000 characters)
• Short data applications
• Full Duplex Call TMO: Private, PABX, PSTN, emergency
• Half Duplex call TMO: Private, group, emergency
• DMO: Private, group, emergency
• Emergency Call Management (user customisable)
• Tactical: Emergency group call to ATTACHED talkgroup
• Non-Tactical: Emergency group call to DEDICATED talkgroup
• Individual: Emergency call to PRE-DEFINED party (half/full duplex)
• Hot Mic: Allows user to talk without needing to press
• PTT button
• Smart TMO/DMO selection for Emergency Call set up to
• Inter-MNI
• Gateway
• Repeater
• PTT double push
• Repeats SDS and Status messaging on selected talkgroup
• Transmission of Repeater Presence Signal
• Emergency Call (Pre-emptive Priority Call)
• Monitoring of and participation in calls whilst in Repeater mode
• Authentication Infrastructure initiated and made mutual
